spindle & belt sander

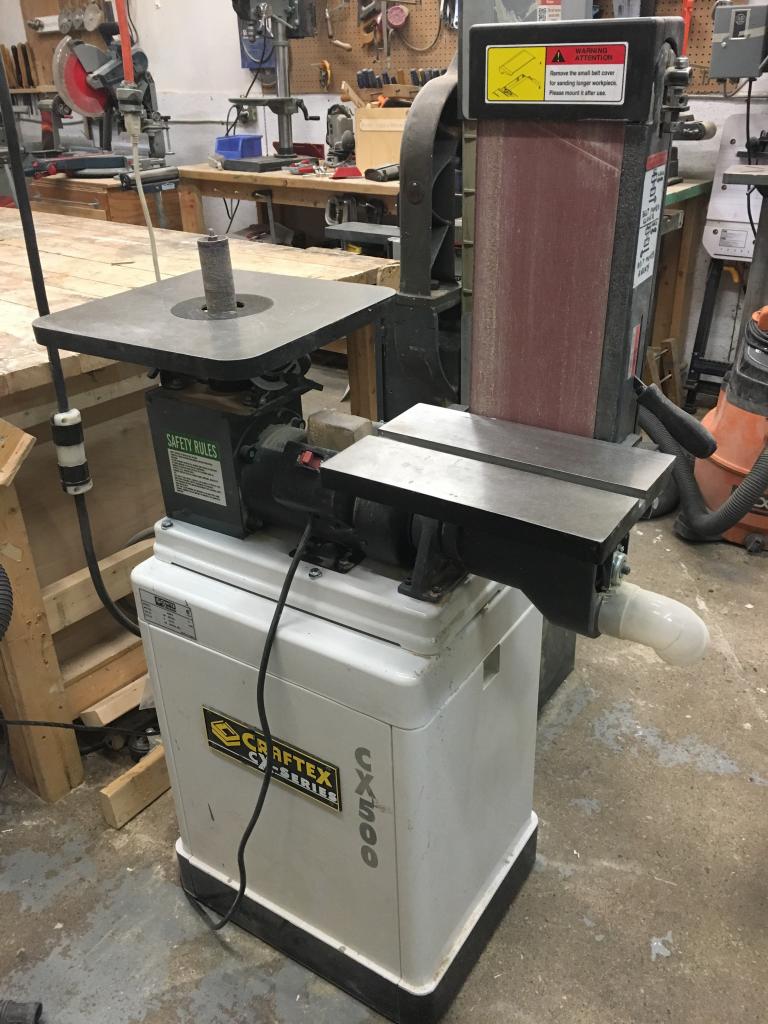

Oscillating spindle sander and belt sander combo.

Safety Precautions

Keep fingers away from pinch points, especially where the sanding surfaces meet the support beds

History and Ownership

this item was bought by Diyode at Busy Bee Tools.

Tool Detail

Craftex CX500

This heavy duty sander features a powerful oscillating spindle sander and a multi position belt sander to tackle just about any job. The oscillating spindle sander features 4 popular spindle sizes which uses sleeves of sandpaper for quick and easy changes. Both tables tilt for added versatility and built in dual port dust collection make for easy clean up.

Motor – 1HP, 110V, TEFC
Table Thickness – 1”
Belt Extension Table Size – 10” x 8” tilts 45 degrees
Belt Sander – 6” x 48” with quick release tension
Belt Tilts 0 to 90 degrees for vertical or horizontal operation
Integrated dust collection
Spindle Size – 1/4”, 5/8”, 1 1/2", 2” x 5 1/2" tall

http://www.busybeetools.com/products/sander-oscillating-spindlebelt-combo-csa.html

Model : CX500

S/N : 1209005

Date : 2012-09
